Pedestal Installation Measurements Form

This form is for submitting the measurements taken using the Mounting Worksheet for Pedestal Installation

Customer Information

Name Phone Number Email Address Vessel Name Model Length Displacement

Wheel Configuration

1 Type of steering system (cable, hydraulic, geared) 2 Number of wheel turns, lock-to-lock 3 Wheel Diameter 4 Number of wheel spokes 5 Spoke diameter

6

Wheel Features

Tapered spokes Dished wheel/Angled spokes Wood rim or large rim (over 1 inch diameter) Rim diameter: Wood wheel Ring inner diameter: Ring outer diameter:

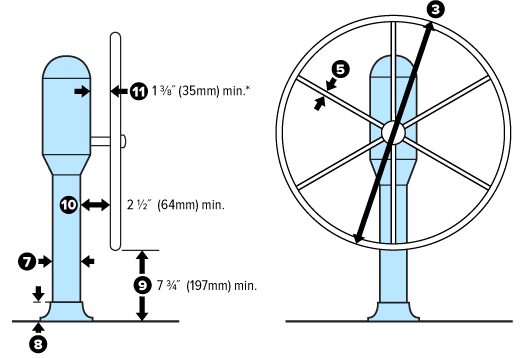

Clearances

7 Pedestal diameter where bracket will mount 8 Height of Pedestal Base above deck 9 Distance from bottom of wheel to deck. Minimum of 7.75" (197mm). 10 Distance between spokes and pedestal. Take measurement where bracket will mount. Minimum of 2.5" (64mm). 11 Distance between spokes and nearest obstruction. Minimum of 1.375" (35mm) for most installations.

12

Wood wheel measurements

Distance between spoke flat and pedestal Distance between wooden inner ring and pedestal

13

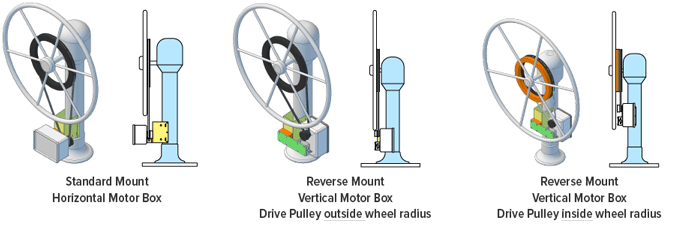

Preferred motor box mounting option

Standard Reverse Vertical, Drive Pulley outside wheel radius Reverse Vertical, Drive Pulley inside wheel radius

Control Box Mounting Method

14

Guardrail / Pipe Mount Rail Diameter (thickness): Bulkhead/Sidewall Mount Shelf or Console Overhead or Pilothouse Ceiling Other

Notes

We can customize your autopilot if there is an unusual mounting situation—just let us know!
