Order Autopilot Parts
Place an order through our website or by calling us at 831-687-0541
Shear Pins (pair) $9.95
Drive Belt for 12" Wheel Pulley $29
For wheel pulleys with 12 3/4" (32cm) outside diameter.
Distance between the wheel and drive pulley centers:
9 1/4˝ (24cm) 1125
12 1/2˝ (32cm) 1270
13˝ (33cm) 1290
14 1/4˝ (36cm) 1350
15 1/4˝ (39cm) 1400
15 3/4˝ (40cm) 1420
16 3/8˝ (42cm) 1455
17 3/8˝ (44cm) 1500
17 7/8˝ (45cm) 1520
19 3/8˝ (49cm) 1595
20˝ (51cm) 1635
21 1/4˝ (54cm) 1690
21 7/8˝ (56cm) 1720
23 1/4˝ (59cm) 1790
23 1/2˝ (60cm) 1800
24 7/8˝ (63cm) 1870
25 3/8˝ (65cm) 1895
26 3/8˝ (67cm) 1945
27 1/2˝ (70cm) 2000
29 1/2˝ (75cm) 2100
38˝ (97cm) 2525
Download mounting templates
(for more information on belt sizing)
Drive Belt for 14" Wheel Pulley $29
For wheel pulleys with 14 3/8" (36.5cm) outside diameter.
Distance between the wheel and drive pulley centers:
11˝ (28cm) 1290
12 1/2˝ (32cm) 1350
13 1/2˝ (34cm) 1400
14˝ (36cm) 1420
14 3/4˝ (37cm) 1455
15 5/8˝ (40cm) 1500
16 1/2˝ (42cm) 1520
17 5/8˝ (45cm) 1595
18 5/8˝ (47cm) 1635
19 5/8˝ (50cm) 1690
20 1/4˝ (51cm) 1720
21 3/4˝ (55cm) 1790
22˝ (56cm) 1800
23 1/2˝ (60cm) 1870
23 7/8˝ (61cm) 1895
25˝ (64cm) 1945
26˝ (66cm) 2000
28˝ (71cm) 2100
36 1/2˝ (93cm) 2525
Download mounting templates
(for more information on belt sizing)

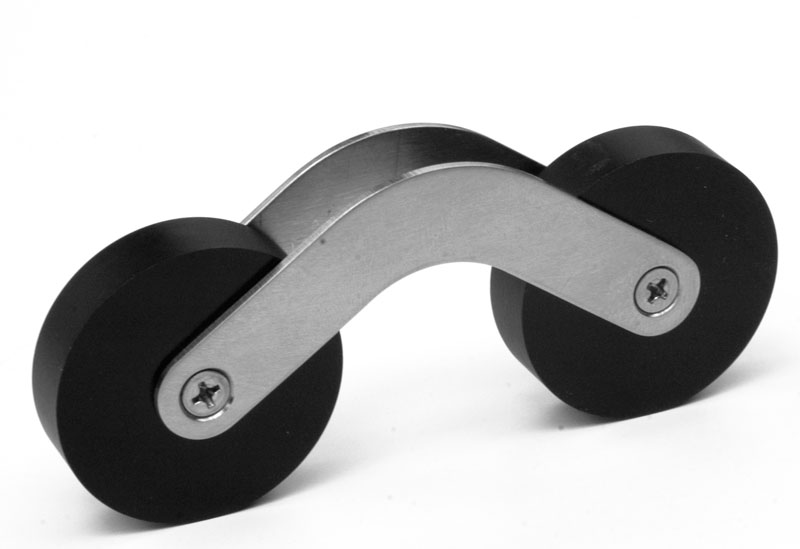

Belt Tensioner $38
The belt tensioner helps to keep the belt engaged without requiring a high belt tension. This helps when there is a lot of torque on the wheel such as during rough seas.
Stainless steel with black delrin rollers
Waterproof Plug & Inline Receptacle for 12V power supply $49
This waterproof plug installs on the 12V power cable coming from the autopilot. The mating receptacle installs inline on the 12V cable going to the battery.
Waterproof Plug & Panel Mount Receptacle for 12V power supply $39
This waterproof plug installs on the 12V power cable coming from the autopilot. The mating receptacle is a panel mount type.
